Buddhist
Architecture
in the Western
Himalayas
North-western view. Neuwirth 2004

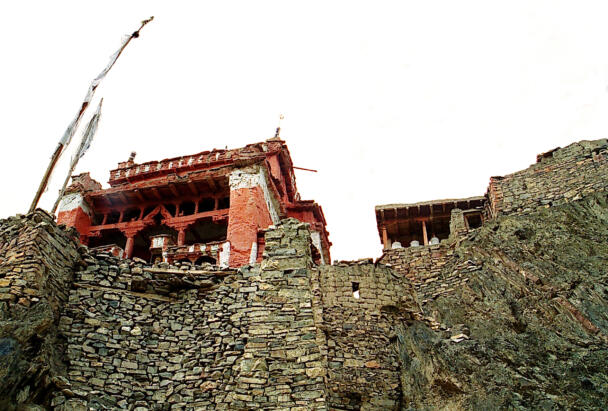

North-eastern view. Luczanits 1998

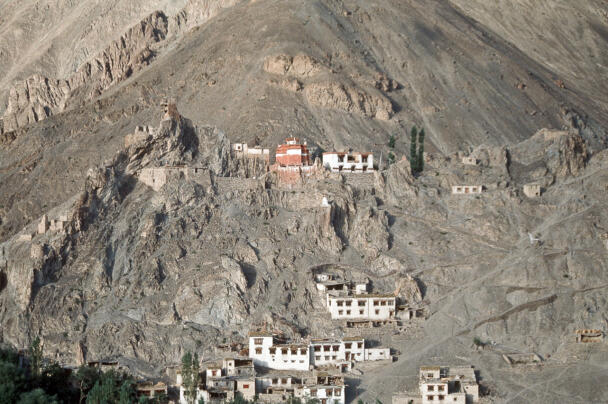

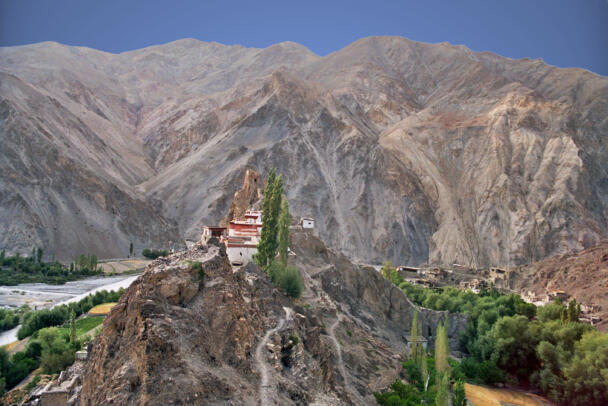

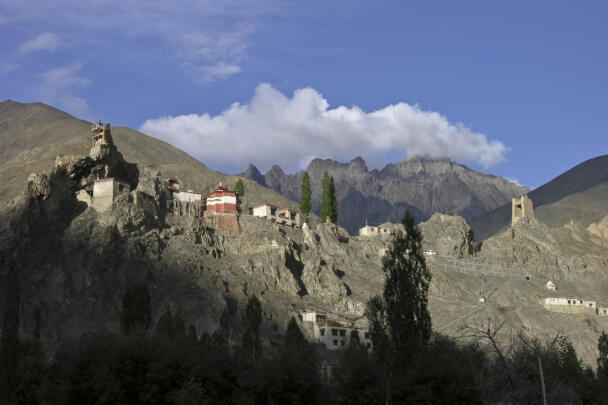

Western view of the ridge with the castle ruins, the temple area and the earthern tower. Luczanits 2006

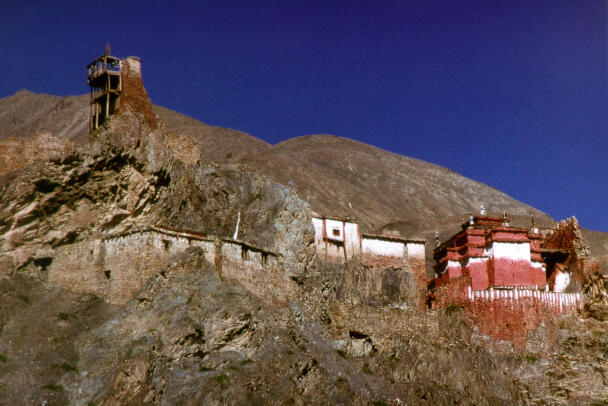

South-western view. Gerner 1982
South-western view of the temple. Luczanits 1998
South-eastern view. Luczanits 1998
Northern view showing the foundations of the site. Neuwirth 1998

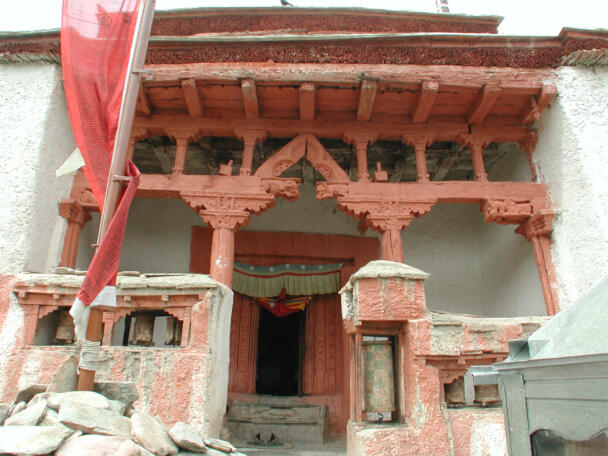

North-eastern view with the vestibule. Luczanits 2003

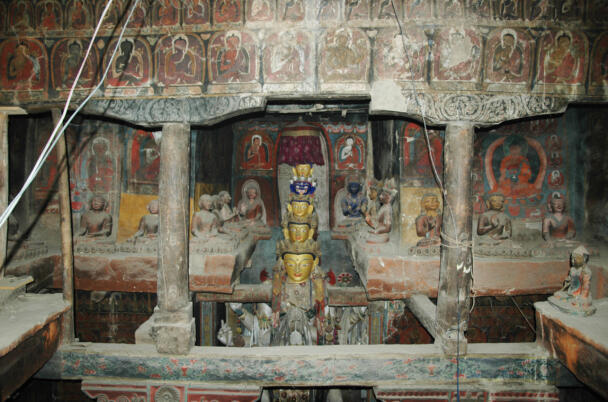

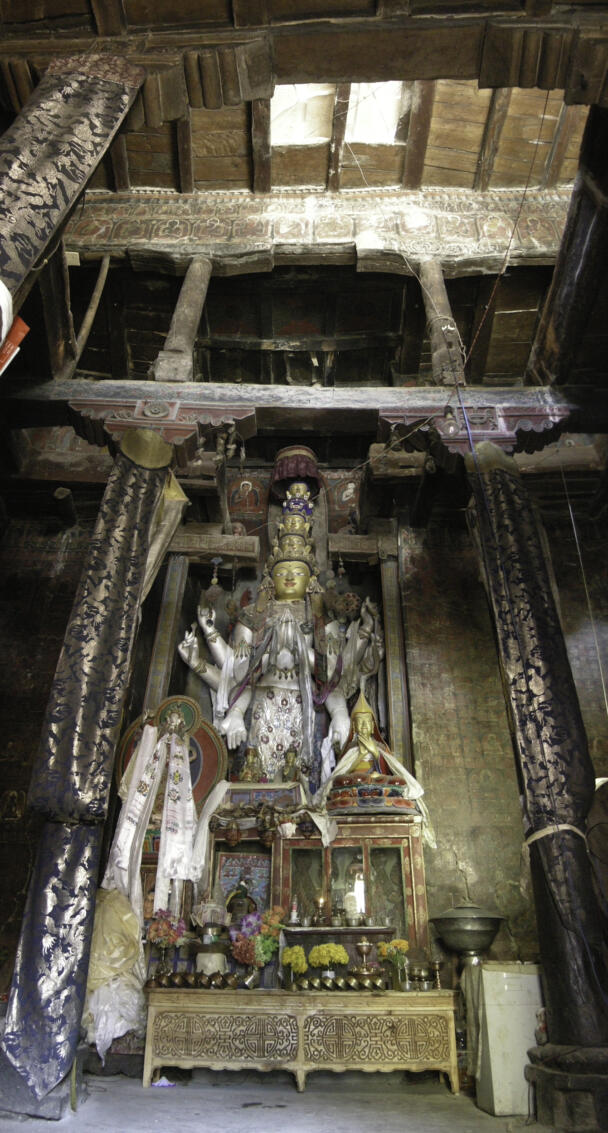

Sculpture of Avalokiteshvara in the main niche of the temple. Luczanits 2009
Head of Avalokiteshvara seen from the gallery. Ley 2009

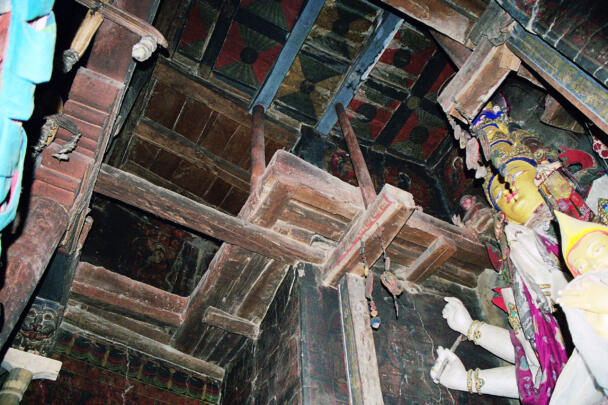

Construction of the gallery and the ceiling above the main niche. Neuwirth 2003

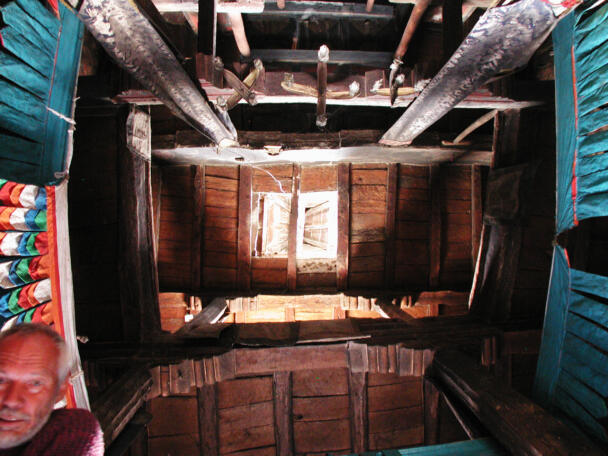

Central construction of the main room and the lantern. Neuwirth 2003

The three-storied temple of Wanla

Coordinates of the site: 34°14'57.84" northern latitude and 76°49'51.12" eastern longitude, at an altitude of 3186 meters.

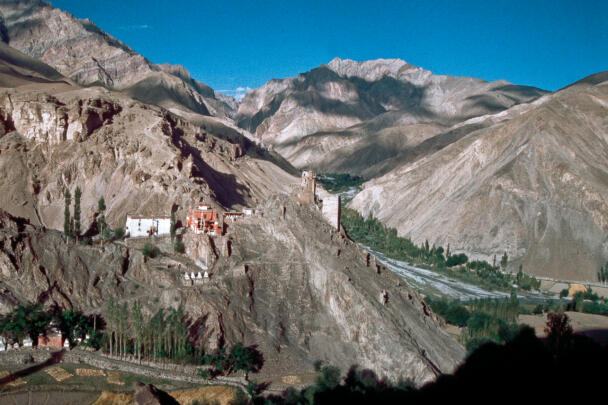

The village of Wanla is located about 70 kilometres (airline) west of Leh at the confluence of the Valpola River and the Shillakong River. The small mountain ridge above the settlement of Wanla is dominated by the imposing ruins of an ancient castle complex on its rocky north-western side. The temple of Wanla is widely conserved in its original appearance and lies in the south-eastern part of the castle ruins. With its exposed position it is yet perceivable from a great distance.
For the foundations of the temple supporting walls of dry stone masonry were built in order to obtain the necessary space for the building and its circumambulation. During the last few decades, the immediate surroundings of the site have been subject to several interventions. The temple consists of a central main room with a gallery and a lantern, three niches and a porch that opens to a small courtyard. The entrance faces north-east while the central niche is located opposite to the entrance in the south-west. If the lantern is considered as a separate storey, the temple was designed as a three-storey building with an open vestibule.
Passing over three steps and through a gate with a decorated door frame the visitor enters the main room of the temple. This is square shaped and contains two lateral niches in the south-eastern and north-western parts. The height of the central apsis is slightly elevated in order that it extends into the second floor. The second floor can be accessed via the roof of the vestibule, where a door leads to the gallery. The gallery is broken by the central niche where the main sculpture of Avalokiteshvara stands. Furthermore, several lineage sculptures are situated on the gallery, but they are not following the correct order anymore. The lantern is accessible via the roof of the temple and a small door on the north-eastern.
Inside the temple the walls are covered on all three floors entirely with mural paintings and, hence, cause the impression of an unvaried appearance, which can be traced back to the original moment of the tempel’s creation.

Cf. Neuwirth & Auer 2015: The Three Storied Temple of Wanla, Buddhist Architecture in the Western Himalayas – Vol. 2, Verlag der TU Graz. Open Access E-Book.
Conservation and Restoration Projects: Activities of the Achi Association in Wanla.

Previous condition

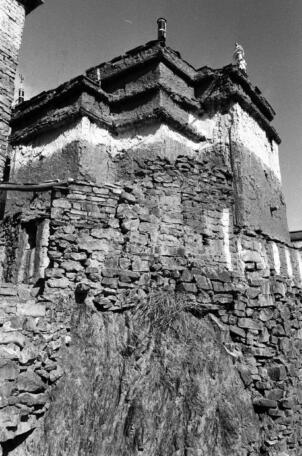

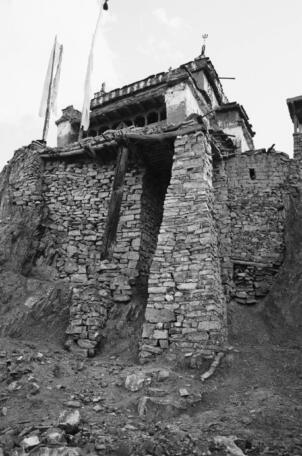

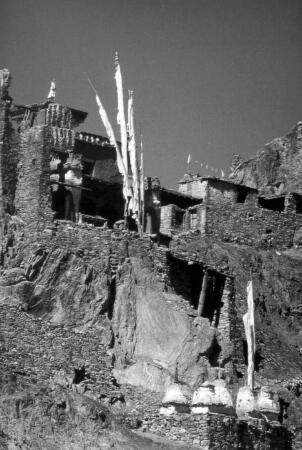

Foundation on the south-eastern side. Gerner 1982

Foundation of the courtyard on the north-eastern side. Luczanits 1994

Walls of the ambulatory on the north-western side. Luczanits 1994

2D plans

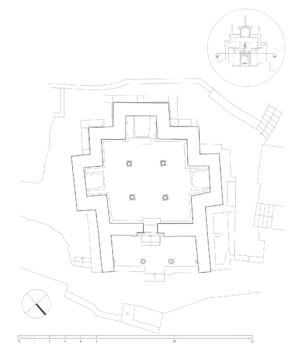

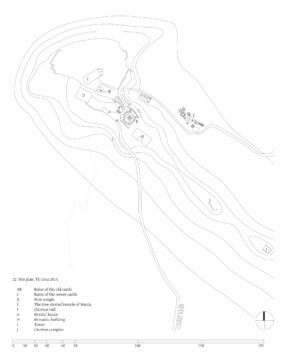

Site plan

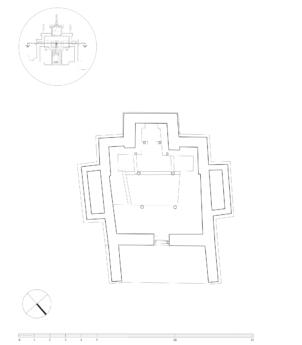

First floor

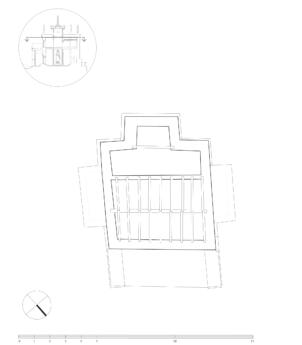

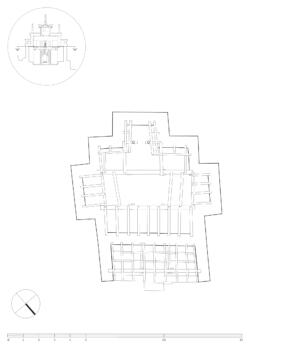

Ceiling above the first floor

Second floor

Ceiling above the second floor

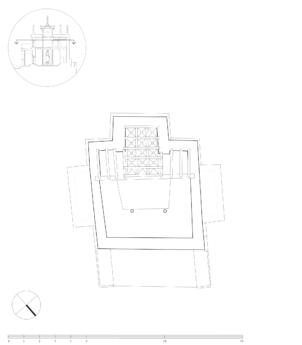

Ceiling above the apse

Third floor

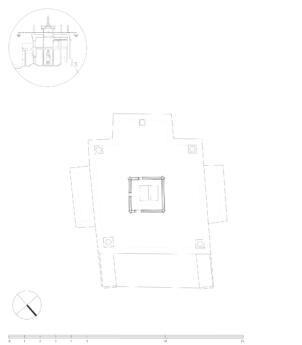

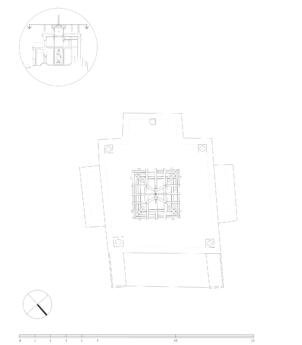

Ceiling above the third floor

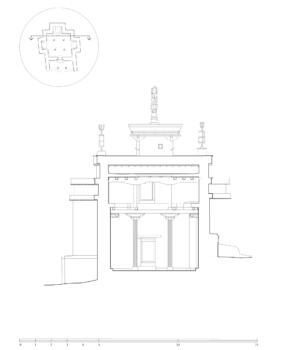

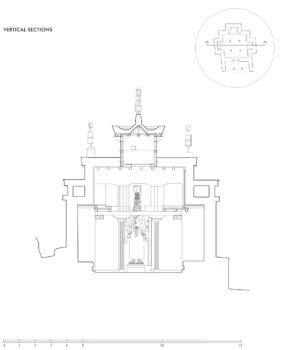

Cross section 01

Cross section 02

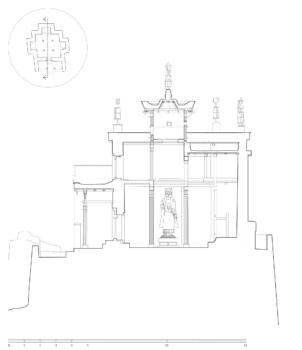

Longitudinal section

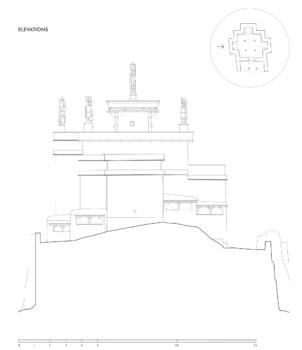

South-eastern elevation

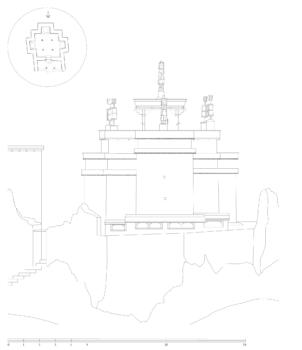

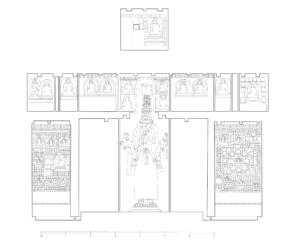

South-western elevation

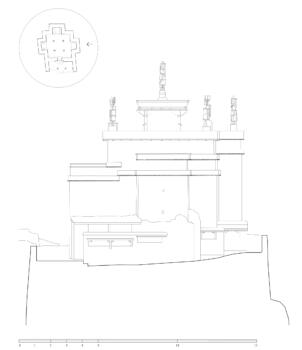

North-western elevation

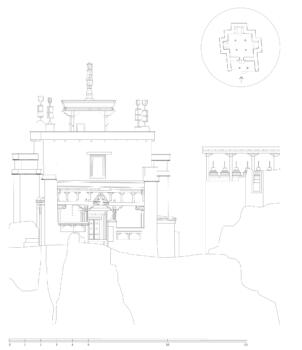

North-eastern elevation

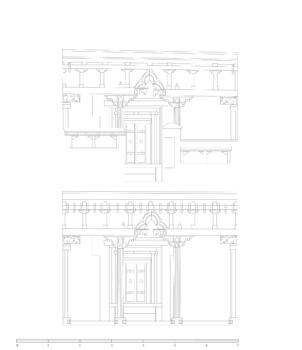

Reconstruction of the entrance hall

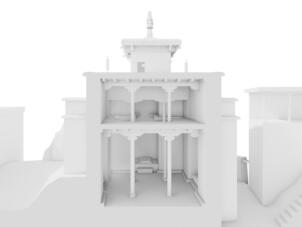

3D Model

Reconstruction of the former appearance of the entrance area

Reconstruction of the former appearance of the entrance area

North-eastern view showing the open veranda and the peg curtains

Vertical section through the veranda with the main entrance door

Vertical section through the interior of the centre area

Vertical section through the interior of the centre area

Vertical section along the central axis towards the south-east

Vertical section in front of the central quad towards the south-east

Horizontal section of the first floor

Horizontal section of the second floor

Top view from the west

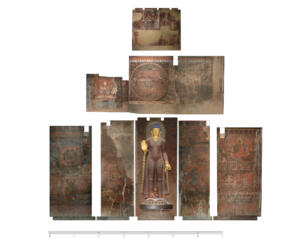

Photmontages of the interior

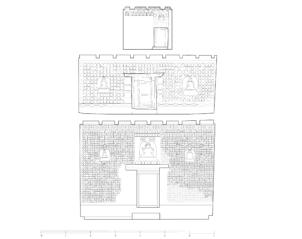

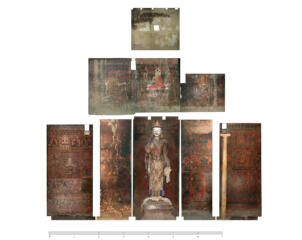

North-estern walls

North-estern walls

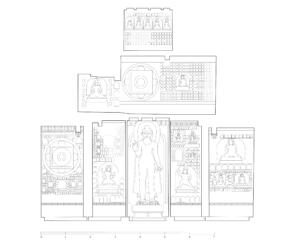

North-western walls

North-western walls

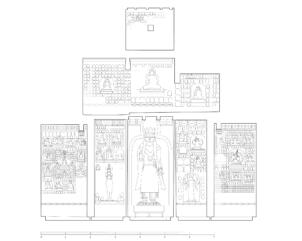

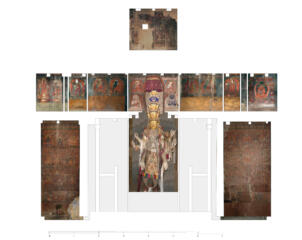

South-western walls

South-western walls

North-western walls

North-western walls

Analysis

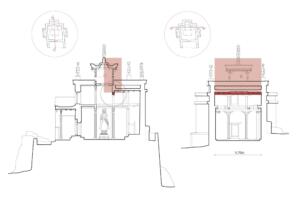

Problem area of load transfer

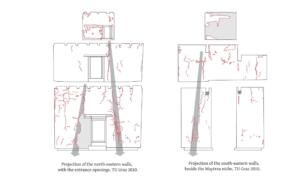

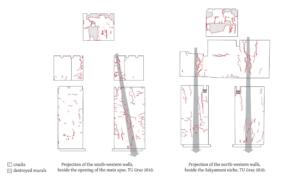

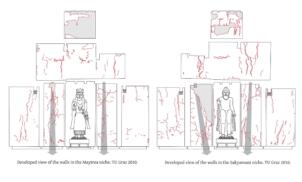

Mapping of the damages of the south-eastern walls

Mapping of the damages of the south-eastern walls

Mapping of the damages

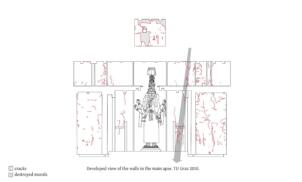

Mapping of the damages of the walls in the main apse

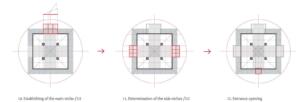

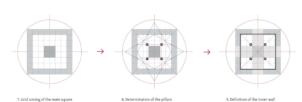

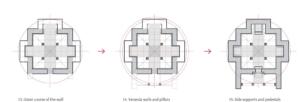

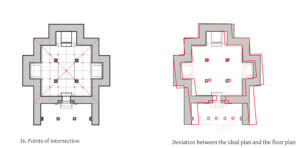

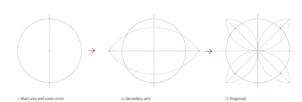

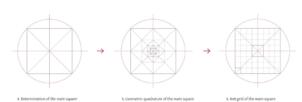

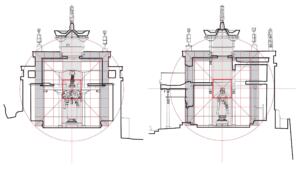

Geometric analyses

Reconstruction of the building process

Reconstruction of the building process

Reconstruction of the building process

Reconstruction of the building process

Reconstruction of the building process

Reconstruction of the building process
